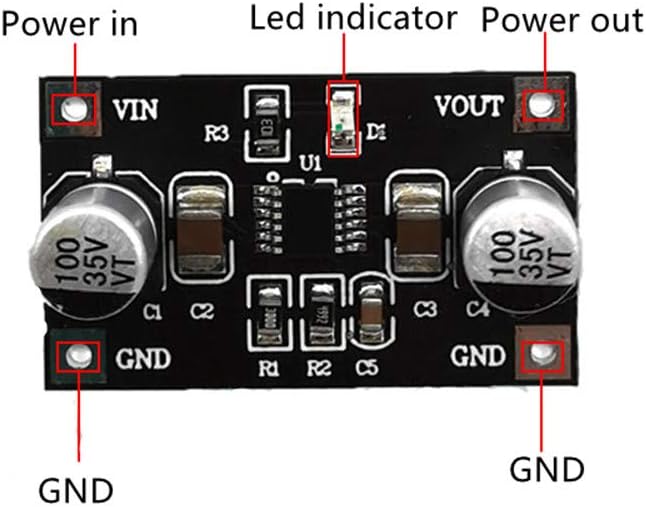

Taidacent LT3045 Linear Voltage Regulator Board Low Noise Dropout Parallel Adjustable Buck Converter 5V 9V 12V 15V (9V Output)

Module model single LT3045 Module type linear regulator buck Input voltage +20V(MAX) Output voltage +5V, +9V, +12V, +15V Output current 500mA (MAX) Input and output pressure difference <500mV Output power 6w (12V/0.5A) Load regulation rate ±0.5% Voltage regulation rate ±1% Static power consumption 1mA Output ripple better than 1mV No-load module noise 0.8uVRMS (10Hz-100kHz) Module PSRR 76dB at 1MHz Module enable Module protection none No reverse connection protection, no fuse Module characteristics Single output, users can connect in parallel to increase output current Module application multiple Precision operational amplifier, high-speed/high-precision data converter, Module weight 2.5g Module size 30*18(mm) Module heating Working temperature -25——+75℃

• linear regulator buck Input voltage +20V(MAX) Output voltage +5V, +9V, +12V, +15V Output current 500mA (MAX)
• Input and output pressure difference <500mV Output power 6w (12V/0.5A) Load regulation rate ±0.5%
• Voltage regulation rate ±1% Static power consumption 1mA Output ripple better than 1mV No-load module noise 0.8uVRMS (10Hz-100kHz)
• Module PSRR 76dB at 1MHz Module enable Module protection none No reverse connection protection, no fuse
• Single output, users can connect in parallel to increase output current
